Comprehensive Automotive Hluav Taws Xob System

I. Khoom Muag Khoom

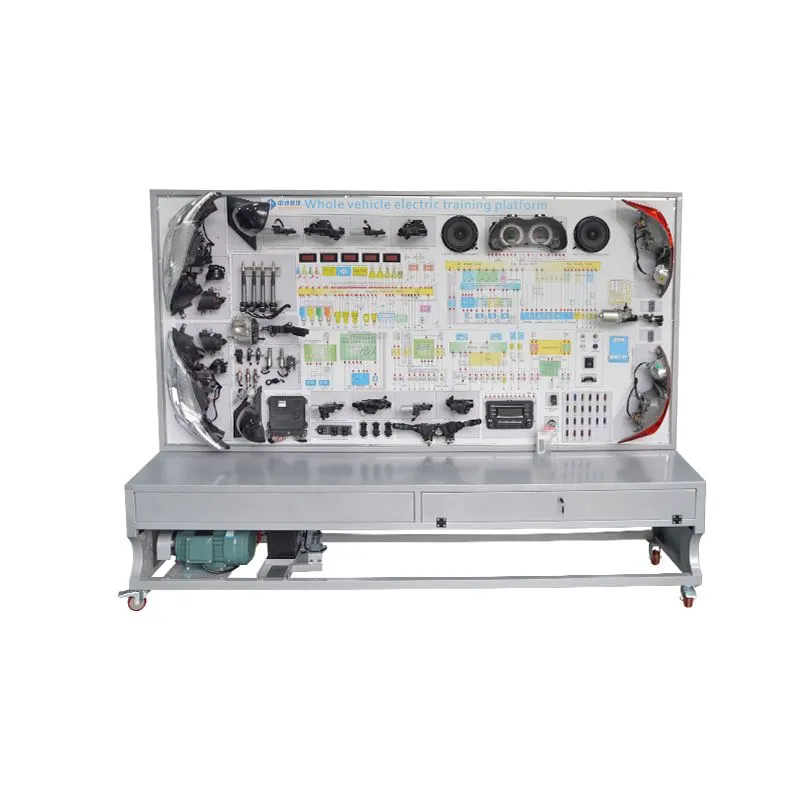

CovComprehensive Automotive Hluav Taws Xob SystemKev cob qhia platform yog ua raws li cov khoom siv hluav taws xob hauv tsheb tiag tiag, qhia txog cov qauv thiab cov txheej txheem ua haujlwm ntawm ntau lub tsheb hluav taws xob, suav nrog lub cav tiv thaiv tub sab, ntsuas qhov system, teeb pom kev zoo, wiper system, horn system, ignition system, hluav taws xob qhov rais, hluav taws xob. qhov rooj xauv, lub kaw lus kaw lus, pib qhov system, thiab them nyiaj system. Nws yog tsim nyog rau cov tsev kawm ntawv los qhia txoj kev xav thiab kev cob qhia txog kev saib xyuasComprehensive Automotive Hluav Taws Xob System.

II. Khoom nta

Tiag tiag thiab ua haujlwm automotive hluav taws xob tshuab uas ua kom pom tag nrho cov qauv thiab cov qauv ntawm covComprehensive Automotive Hluav Taws Xob System.

Txuas lub zog hluav taws xob thiab ua haujlwm ntau yam hluav taws xob hloov hluav taws xob thiab cov nyees khawm ntawm lub vaj huam sib luag qhia kom pom cov txheej txheem ua haujlwm ntawm lub tsheb cav hluav taws xob tswj qhov system, ntsuas qhov system, teeb pom kev zoo, wiper system, horn system, ignition system, hluav taws xob qhov rais, hluav taws xob qhov rooj xauv , audio system, pib qhov system, thiab them nyiaj system.

Cov khoom vaj huam sib luag yog ua los ntawm qib siab aluminium composite cov khoom uas muaj kev cuam tshuam-tiv taus, muaj kuab paug-resistant, hluav taws-resistant, thiab noo-resistant. Qhov saum npoo tau txais kev kho tshwj xeeb txau txheej; lub vaj huam sib luag tau luam tawm nrog daim duab kos duab xim uas tsis ploj mus. Cov tub ntxhais kawm tuaj yeem sib piv daim duab kos duab nrog cov khoom siv tiag tiag kom nkag siab thiab txheeb xyuas cov qauv kev ua haujlwm ntawm txhua lub tsheb hluav taws xob.

Lub vaj huam sib luag qhia tau nruab nrog cov ntsuas hluav taws xob uas tso cai rau kev ntsuas ncaj qha ntawm cov teeb liab hluav taws xob los ntawm cov khoom siv hluav taws xob hauv tsheb, xws li kev tiv thaiv, qhov hluav taws xob, tam sim no, thiab cov cim zaus.

Lub vaj huam sib luag suav nrog lub qhov (socket) kuaj xyuas uas tuaj yeem txuas rau lub siab lossis thoob plaws lub tsheb txiav txim siab rau ECU coding queries, nyeem thiab tshem tawm cov lej txhaum, nyeem cov ntaub ntawv ntws, ntsuas cov khoom ntsuas, ntsuas qhov ntsuas, ntsuas waveform, thiab qhov sib txuam tseem ceeb.

Lub vaj huam sib luag nta 1.5mm txias-kuav los tiag steel qauv rau kev zoo nkauj zoo nkauj; lub hauv paus yog tsim los ntawm welded steel, nrog rau cov txheej txheem tshuaj tsuag thiab nws tus kheej-locking casters rau kev txav mus los.

III. Technical Specifications

Qhov ntev (kwv yees): 2400 × 700 × 1900mm (L × W × H);

Fais fab mov: Peb-theem plaub-xaim (los yog peb-theem tsib-xaim) 380V ± 10%, 50Hz;

Kev khiav hauj lwm voltage: DC 12V;

Ua haujlwm kub: -40 degree rau +50 degree ;

Peb-theem asynchronous lub cev muaj zog;

Voltage: AC 220V / 380V;

Lub Zog: 2.2KW;

Ceev: 1420 r / min;

Cov yeeb nkab steel: 40 × 40 × 3mm;

Txee: 1.5mm txias-kuav los tiag steel stamped qauv, nrog lub qhov rooj txij nkawm tom qab;

Mobile Casters: 100 × 60mm.

IV. Basic Configuration (ib chav tsev)

iV.Cov cuab yeej tuav ceev faj

Tsis txhob txav cov cuab yeej ib leeg thaum thauj. Feem ntau ntawm peb cov khoom yog nruab nrog mobile casters, thiab cov khoom siv feem ntau loj thiab hnyav.

Automotive kev cob qhia pab feem ntau muaj cov duab tsis zoo. Ua ntej yuav tsiv ib qho khoom, xyuas cov khoom protruding zoo li cov ntsia hlau los yog cov npoo ntse kom tiv thaiv kev raug mob. Yog tias muaj kev tso cai, xav txog kev hnav hnab looj tes thiab khau.

Tsis txhob txav cov cuab yeej ceev nrooj hla txhua qhov av, vim qhov no tuaj yeem ua rau poob ntawm kev tswj hwm thiab kev nyab xeeb loj, nrog rau kev puas tsuaj loj rau cov khoom siv.

Ceev faj tshwj xeeb thaum tsiv cov cuab yeej hla cov chaw ua haujlwm, ramps, ntaiv, thiab lwm qhov chaw nplua. Thaum thauj khoom los ntawm qhov rooj, xyuas kom lub qhov rooj dav txaus kom tsis txhob raug mob rau cov ntiv tes.

Thaum xaiv qhov chaw tso chaw, xaiv qhov chaw tiaj tus, qhov cua nkag nrog lub vaj tse thiab kev nyab xeeb hluav taws. Thaum qhov chaw nres tsheb tau lees paub, koom nrog cov brakes ntawm cov casters mobile lossis thaiv lawv nrog cov khoom siv los tiv thaiv dov. Feem ntau ntawm peb cov khoom yuav tsum tau muab tso rau kab rov tav kom ua haujlwm zoo thiab raug.

Tswv yim:Siv cov cuab yeej cuab tam thaum twg los tau.

V. Txhim kho thiab Debugging ceev faj

Cov neeg tsis yog kws tshaj lij raug txwv tsis pub txhim kho lossis kho cov khoom siv. Cov kws tshaj lij yuav tsum nkag siab zoo txog cov cuab yeej ua haujlwm thiab kev txwv tsis pub ua ntej kev teeb tsa thiab tuaj yeem tiv tauj rau cov chaw tsim khoom rau kev pabcuam yog tias tsim nyog.

Xyuas kom cov khoom siv tau ruaj khov los tiv thaiv cov khoom los ntawm kev poob thiab ua rau raug mob.

Yog tias cov khoom siv hluav taws xob 220V / 380V, lub zog hluav taws xob yuav tsum tau teeb tsa los ntawm tus kws tshaj lij hluav taws xob tsim nyog. Khaws qhov chaw nyab xeeb ntawm qhov chaw siv hluav taws xob no thaum ua haujlwm kom tsis txhob muaj hluav taws xob poob.

Kev hloov kho tsis raug tso cai rau cov cuab yeej no raug txwv.

VI.Kev ceev faj txog kev siv

Cov khoom siv yuav tsum tau siv nyob rau hauv ib qho chaw zoo-ventilated, qhuav ib puag ncig. Paub koj tus kheej nrog rau qhov chaw thiab kev siv hluav taws tua hluav taws hauv chav xyaum ua haujlwm.

Cov kws qhia yuav tsum koom nrog peb cov kev pabcuam tomqab muag ua ntej siv cov cuab yeej siv los ua tus tswv cov txheej txheem kev ua haujlwm thiab cov hauv paus ntsiab lus, thiab lawv yuav tsum coj cov tub ntxhais kawm hauv kev kawm. Cov tub ntxhais kawm tsis raug tso cai ua cov cuab yeej siv ib leeg.

Ua ntej siv cov khoom siv, xyuas cov kev sib txuas ntawm lub hwj chim thiab tshem tawm cov khib nyiab los ntawm cov qauv qhia, xws li cov cuab yeej disassembly thiab ntsuas cov cuab yeej.

Tshawb xyuas qhov hnav ntawm txhua qhov module. Yog tias ib qho khoom puas lawm, ua haujlwm kho lossis hloov lawv. Kev saib xyuas yuav tsum tsis txhob ua thaum lub tshuab hluav taws xob tau teeb tsa.

Ua raws li cov cai hauv cheeb tsam kev cob qhia thiab mloog tus kws qhia cov kev npaj. Thaum muaj xwm txheej, nyob twj ywm, txiav lub hwj chim yog tias ua tau, thiab qhia rau tus kws qhia kom khiav tawm ntawm thaj chaw tam sim ntawd.

Thaum lub sijhawm ua haujlwm ib txwm muaj, nco ntsoov paub txog qhov kub thiab txias, kev kub ntxhov, thiab kev ceev kom tsis txhob raug mob thiab cov khoom puas tsuaj. Cov cuab yeej muaj cua sov, thiab tsis txhob kov lawv thaum ua haujlwm.

Cov terminals tshawb nrhiav lossis cov khoom sib txuas sib txuas ntawm lub vaj huam sib luag qhia tau ncaj qha mus rau kev tswj cov tshuab, sensors, thiab actuators rau kev sim nkaus xwb. Thov ua cov ntawv xeem raws li tus kws qhia cov lus qhia. Kev siv cov teeb pom kev yooj yim (tsuas yog cov qij tsis tu ncua), cov xaim hluav taws xob, lossis cov khoom siv hluav taws xob txuas mus rau cov terminals yog nruj me ntsis txwv tsis pub, vim qhov no yuav ua rau luv luv Circuit Court, teeb liab yuam kev, thiab tej zaum yuav ua rau cov khoom puas thiab kev nyab xeeb.

Tom qab kev cob qhia, tua lub hwj chim loj thiab xyuas kom cov cuab yeej tiv thaiv dej thiab plua plav.

Tsis tu ncua tswj cov khoom siv, suav nrog hloov cov tshuaj tiv thaiv kab mob, cov roj iav, cov dej nres, thiab lwm yam.

Kev haus luam yeeb thiab lwm yam kev ua haujlwm txaus ntshai, xws li qhib nplaim taws, raug txwv nyob ze ntawm cov khoom siv.

VI.After-Sales Service Philosophy:

Hnub uas cov khoom raug muab tso rau hauv kev siv yog peb qhov kev sim tseeb. Peb yeej tsis tuaj yeem zam peb qhov tsis txaus; kev daws teeb meem yog peb txoj kev xaiv nkaus xwb. Muab kev pab dawb rau koj yog peb txoj kev cog lus mus ib txhis.

VII.After-Sales Service Process:

Koj, tus neeg siv khoom, yuav xa email rau peb qhia txog koj cov kev xav tau tom qab muag.

Thaum tau txais koj tus email, peb yuav teb tam sim ntawd thiab ua haujlwm los daws qhov teeb meem sai li sai tau.

Peb ua raws li kev soj ntsuam thiab taug qab kev pabcuam, ib txwm saib xyuas koj qhov kev siv thiab muab kev pabcuam raws sijhawm.

Nco tseg:Peb zoo siab txais tos koj hu rau txhua lub sijhawm!
